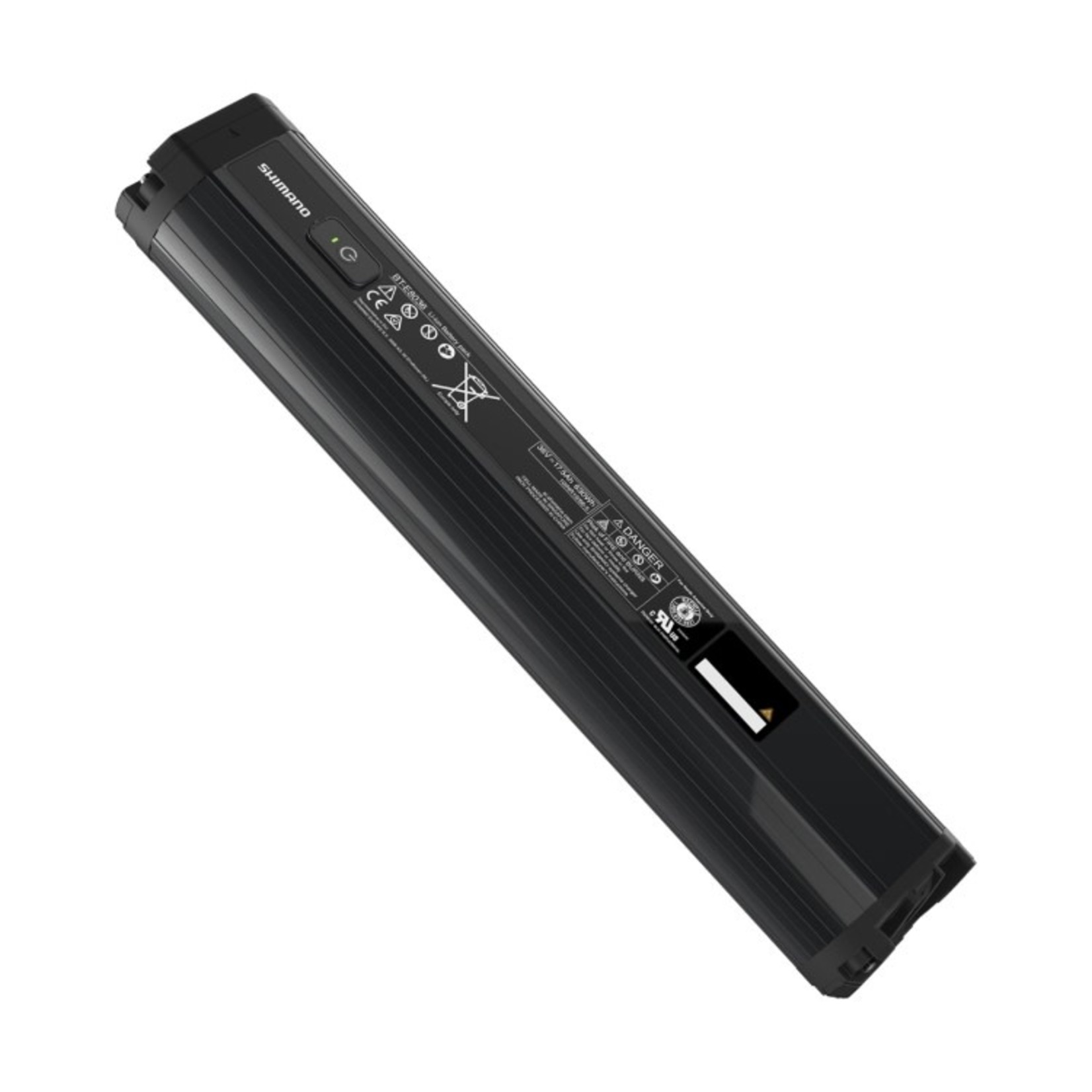

SHIMANO STEPS - Integrated Type Battery for Down Tube - 630 Wh

Designed specifically for SHIMANO's STEPS system, the BT-E8036 battery integrates smoothly into the down tube and features 630 Wh capacity. Delivering a sleek design, the battery also charges quickly and retains its max capacity longer throughout its lifespan.

• Supports sleek frame design
  • Same mount as current BT-E8035
• High performance charging cycle
• Voltage: 36 V
• Capacity: 17.5 (Ah) / 630 (Wh)
• Quick charging:
  • 50% charge in 2.5 hours*
  • Full charge in 6 hours*
    *When charged with EC-E8004
• Durable battery retains max. capacity longer
  • >60% capacity after 1000 charges

PRODUCT SPECIFICATIONS

• MODEL NO    BT-E8036
• Average weight    3.7
• Chemistry    Li-Ion
• Position    Integrated
• Rated voltage (V)    36
• Rated capacity (Ah)    *** 17.5
• Rated capacity (Wh)    630
• Cyclelife span for charge (times)    1,000 (more than 60%)
• Charge level display    ✔
• Error signal    ✔
• Charging port    ** -
• System on/off switch    ✔
• Compatible charger    EC-E6000, EC-E6000-3 (for Japan), EC-E6002, EC-E8004
• Compatible battery mount    BM-E8030-A BM-E8030-B BM-E8031-A BM-E8031-B
• Time to charge (hour)_SOC = 50%    * 2.5
• Time to charge (hour)_SOC = 80%    ** 3.2 (*** 4)
• Time to charge (hour)_SOC = 100%    ** 4.8 (*** 5.7)
• Compatible adaptor for charge    SM-BTE80

Remarks    * BT-E8036 for Japan (16.2 Ah, 583 Wh) ** By EC-E8004 (*** In case of 100 V AC) **** with SM-BTE80 or EW-CP100
